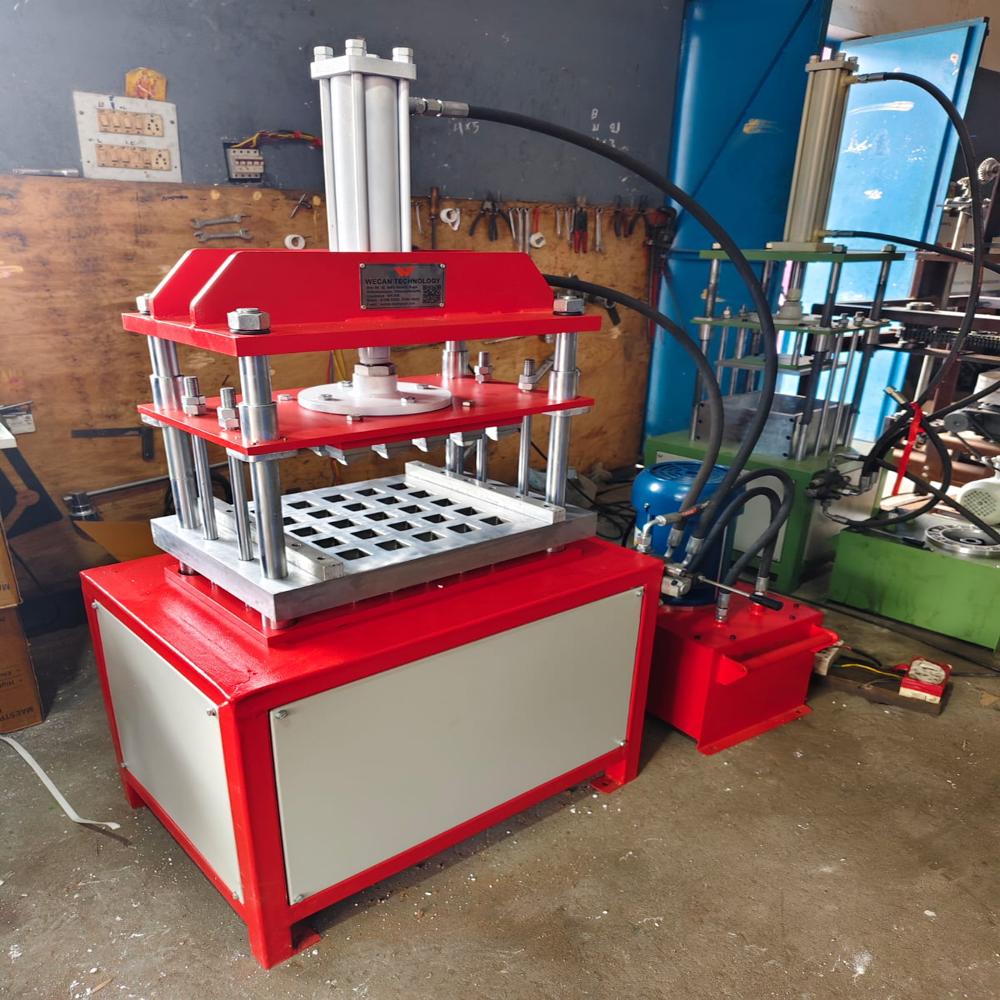

Send InquiryCup Sambrani Machine Square Type Model
Price 180000.0 INR/ Unit
MOQ : 1 Unit
Cup Sambrani Machine Square Type Model Specification
- Connectivity Options
- N/A (Standard electric connection)
- Accuracy
- High Forming Accuracy (0.5 mm)
- Motor Power
- 2 HP - 3 HP (Hydraulic Motor Power)
- Frame Type
- Heavy Steel Fabricated Frame
- Model No
- CSM-SQ-2024 (Example)
- Lubricating System
- Manual / Greased Bearings
- Noise Level
- < 70 dB
- Production Capacity
- 2500 - 3500 pieces/hour
- Frequency
- 50 Hz
- Control System
- Electrical Panel and Hydraulic Control Valve
- Features
- Rugged construction, Easy mold change, User-friendly
- Drive
- Hydraulic Cylinder Drive
- Machine Type
- Hydraulic Cup Molding
- Plastic Processed
- N/A, Used for Sambrani powder/paste molding
- Voltage
- 220-240 V / 415 V (Single or Three Phase)
- Power Rating
- 3 kW (Depending on Model)
- Cooling System
- Air Cooled
- Operating Temperature
- Ambient 5C - 40C
- Product Type
- Cup Sambrani Making Machine (Square Type Model)
- Technology
- Hydraulic Press Technology
- Power Source
- Electric with Hydraulic System
- Operating Type
- Semi-Automatic / Automatic (Model-dependent)
- Power
- 2 HP - 3 HP (Hydraulic Motor Power)
- Pressure
- Up to 5-10 Ton (Adjustable depending on model specifications)
- Surface Treatment
- Powder Coated and Painted Finish
- Dimension (L*W*H)
- Approx 3.5 x 2.5 x 5 ft (1080 x 750 x 1530 mm, Approximate)
- Weight (kg)
- Approx 350 - 400 kg
- Color
- Red & Grey
- Usage & Applications
- Sambrani Cup (Dhoop Cup) Manufacturing
- Energy Consumption
- Low (Depends on cycle usage)
- Cycle Time
- 4-6 seconds per cycle
- Safety Features
- Emergency Stop, Hydraulic Overload Protection
- Automation Grade
- Semi-Automatic / Automatic (customizable)
- Mold Change Time
- Approx 10 minutes
- Die Size/Shape
- Square cup mold, multiple cavity (as per order)
- Installation
- Skid Mounted for Easy Shifting
- Maximum Stroke Length
- 150 mm - 200 mm
- Cylinder Bore Size
- 100 mm (Adjustable as per tonnage)
- Hydraulic Oil Capacity
- 40-50 Liters
- Accessories Included
- Standard Mold Set, Operation Manual, Hydraulic Oil (Initial fill)
- Operator Requirement
- 1 Operator
- Material of Construction
- MS Body with SS Mold Plate (optional customization)
- Control Panel
- Semi-automatic push button or PLC (optional in advanced model)
